Max. Tube O.D.: ø25.4(O.D) x 2.0(W.T.)mm
Max. Bending Radius: 120mm
Max. Bending Radius: 120mm
Please select your language
Language
Language
Mechanical Design
- Machine's design is based on dynamic mechanical analysis to offer reliable performance.
- Compact bend head & arm minimize the possible interferences.
- Climbing clamp design enables sufficient space to execute bending efficiently.
- Quick tooling changeover shortens set up time and comforts users.
- Individual electrical cabinet is mounted separately from the machine to prevent the affection of vibration.
- Motions driven by all electric-servo motors assure the high accuracy & repetitive performance.
- Auto-Tooling Positioning Function :Clamp/Pressure die are positioned automatically via smart torque control.
- High Stability : All electric-servo control without oil temperature problem.
- Low Noise
- Low Pollution
Optimized & Flexible Bending Setting

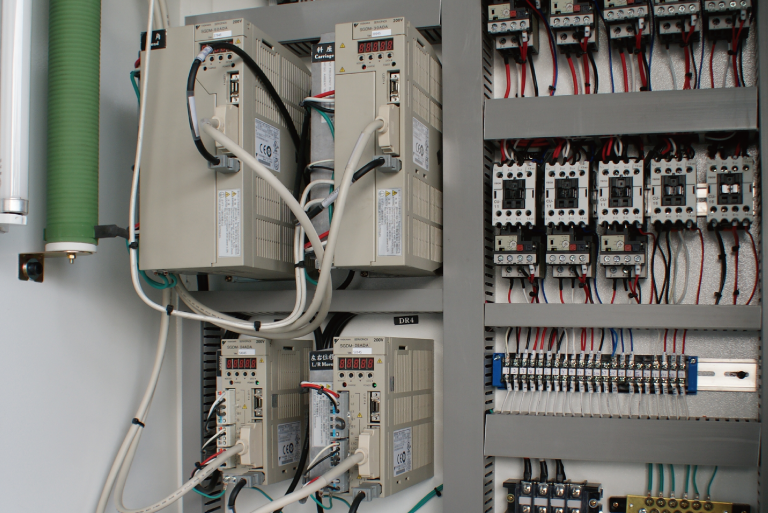

The electrical cabinet is a modular design and is separately mounted from the machine to prevent being affected by machine vibration.

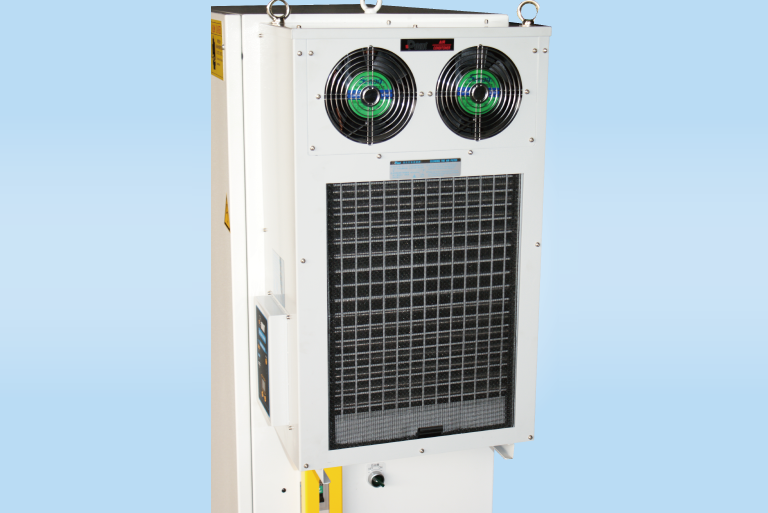

The electrical cabinet is equipped with an air conditioner to keep at a constant temperature.
- Operation mode: Manual, Semi-Auto, Fully-Auto, Single-Bend.
- User friendly interface with 17"touch screen / icon display.
- Positions of each axis and bending angle are numerically shown in the screen.
- Each axis has 9 main speed with 10 fine-tune speed to satisfy various applications.
- The individual motion can be set as requests during the bend cycle, such like Mandrel(on/off), 2-steps MDR retraction, boost function.
- Teach / Process function, any motions can be customized to successfully return the bend-arm to initial position.
- Overall lendth recommendation, the system calculates the necessary length automatically when Y.B.C data has been set.
- Total, present, count-down functions are available in the workload counter.
- Automatic display of cycle time of X.Y.Z-coordinate can be converted to Y.B.C axis.
| Spec / Model | HC-250R3-NSM | |
|---|---|---|
| Max. Tube O.D. & W.T. (O.D. x t) | Mild Steel (mm) | ø25.4 x 2.0 |
| Stainless Steel (mm) | ø22.0 x 1.5 | |
| Rectangle Pipe (mm) | □22.0 x 1.2 | |
| Max. Draw Bending Radius (Max. R)(mm) | 120 | |
| Push Bending Radius | *Min. (mm) | 7D~10D |
| Max. (mm) | ∞ | |
| Max. Bending Angle (degree) | 200° | |
| Max. Effective Distance of Mandrel (mm) | 1500 mm | |
| Electric-Servo Speed | Feeding (mm/sec) | 1100 mm |
| Rotation (degree/sec) | 260° | |
| Bending (degree/sec) | 160° | |
| Electric-Servo Accuracy | Feeding (mm) | ±0.05 mm |
| Rotation (degree) | ±0.05° | |
| Bending (degree) | ±0.05° | |
| Total Power (HP) | 12.9 HP | |
| Machine Size (L x W x H）(mm) | 3500 x 1300 x 1700 mm | |
| Machine Weight (kgs) | 1,480 kgs | |
Remarks:
Read More *Min. push bending radius(mm) : it’s subject to tube O.D, W.T, tube material..etc.
3D Bending Process Simulation (Optional)
- 3D tube profile can be shown immediately when editing YBC program to help users.
- Under Auto mod, 3D tube graphic indicates current bending section by different color block.
- 3D Bending Process Simulation(Optional) directs bending process in advance to avoid unnecessary waste.

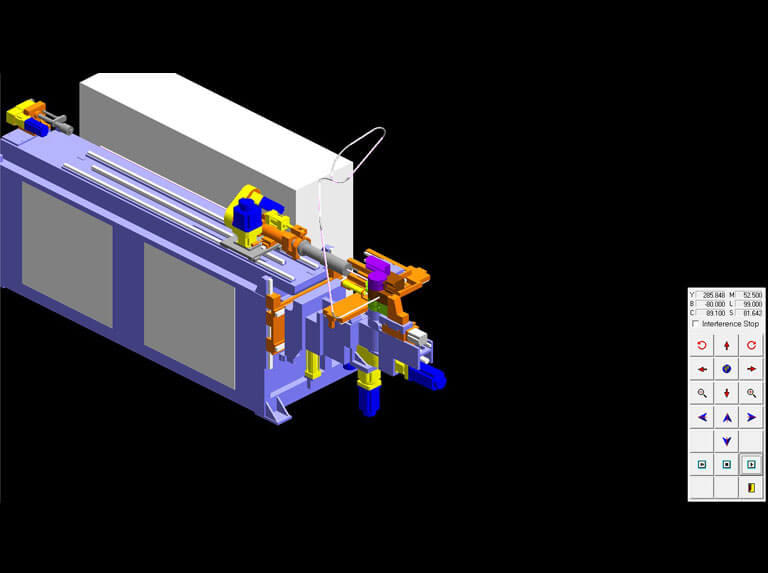

3D Bending Process Simulation (Optional)

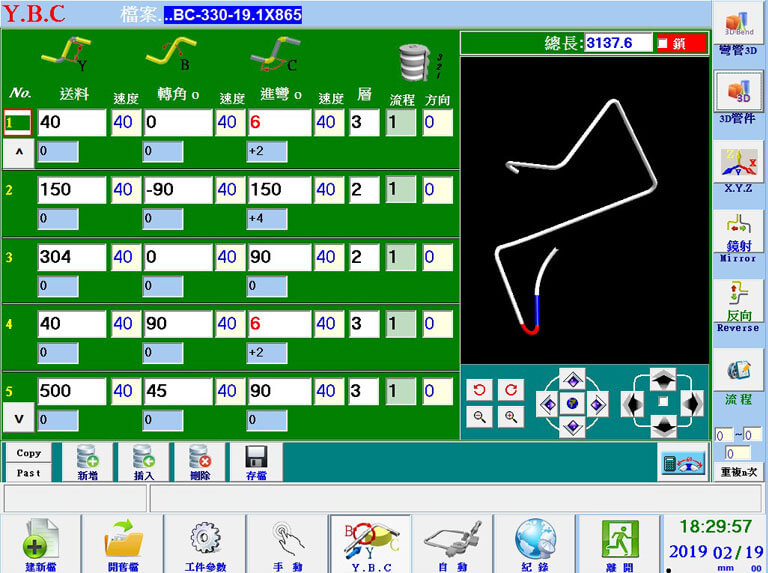

3D Tube Simulation

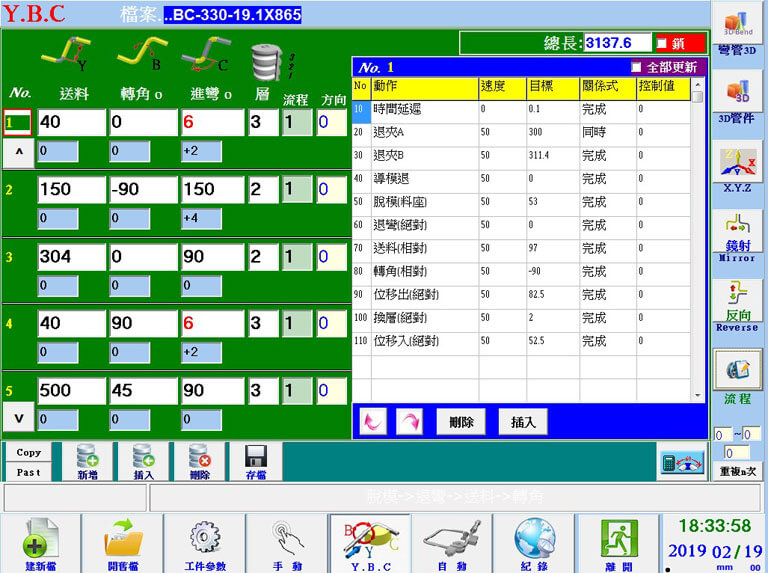

Y.B.C-axis Page

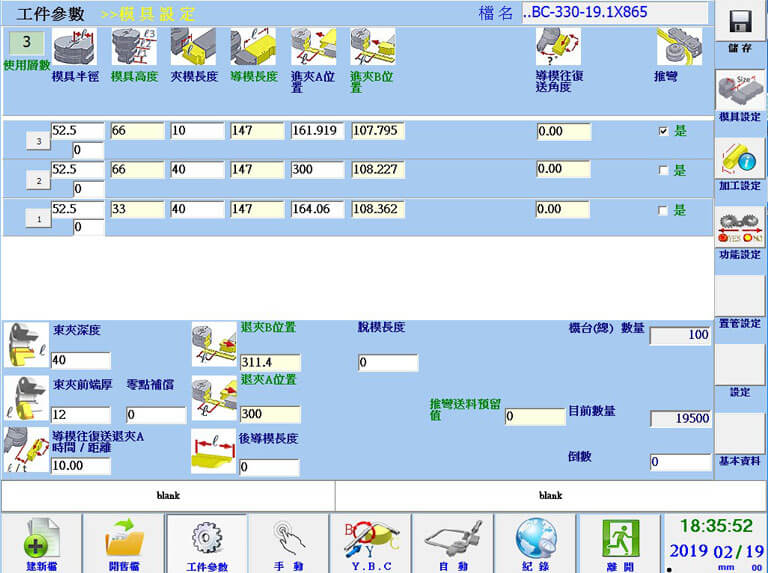

Parameter Setting Page

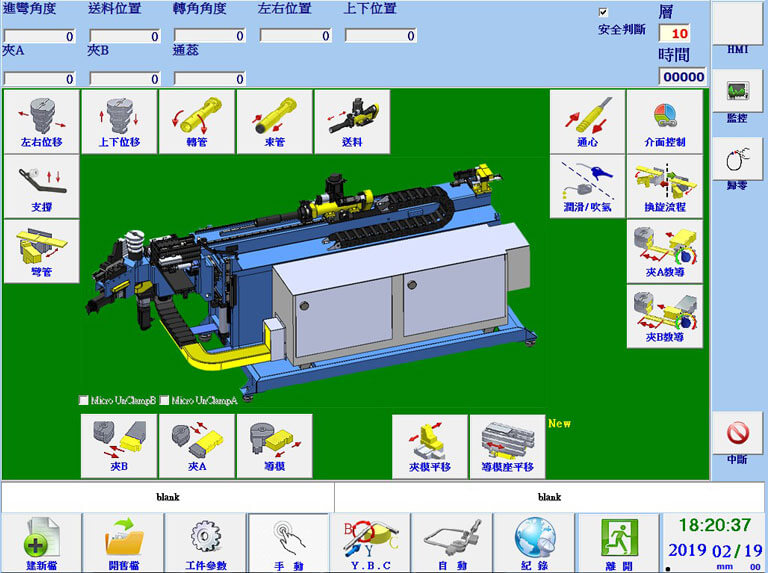

Manual Mode

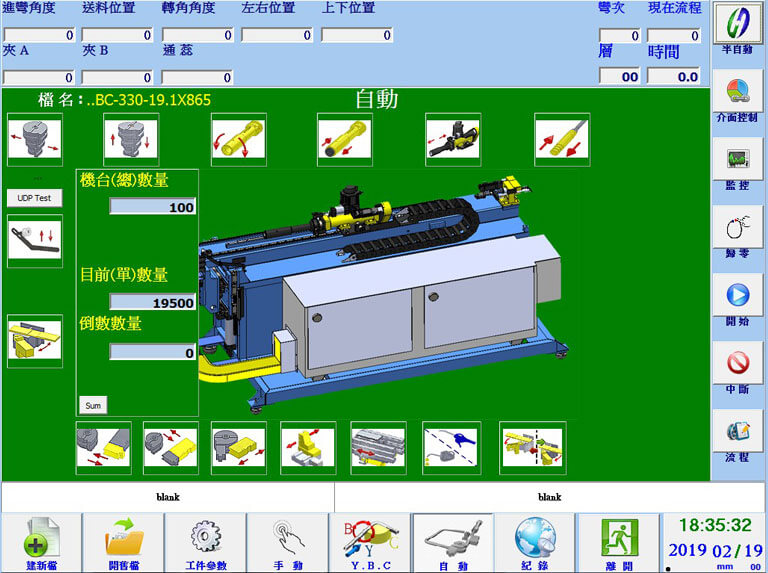

Fully Auto. Mode

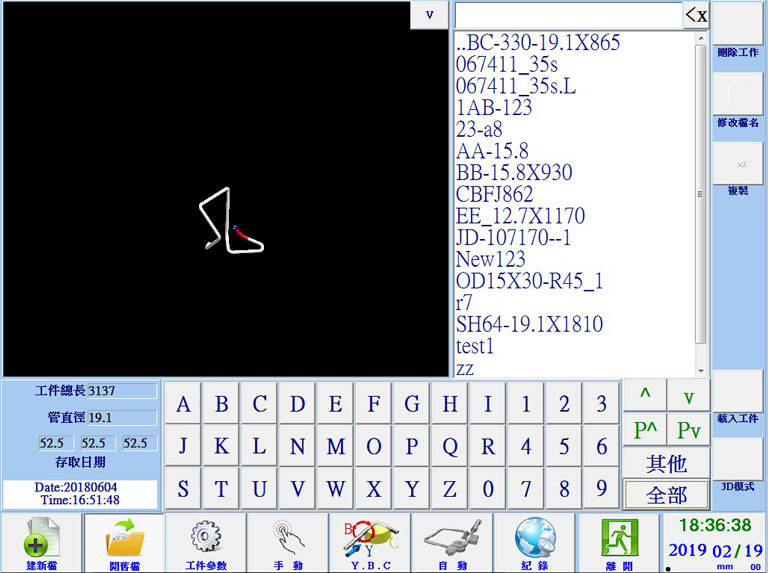

Open File Page
