Max. Tube O.D.: ø30(O.D) x 1.5T(W.T.)mm
Max. Bending Radius: 80mm
Max. Bending Radius: 80mm
Please select your language
Language
Language
All Electric-Servo Control(8 Axes)
High programmable bending sequence can be driven through all-electric with 8 axes.
Low Noise
Low Pollution
High Accuracy
Abnormal Section Notification
Oil temperature effect free
Right-hand & Left-hand Bending in "One" process
Complex parts including right & left direction bending can be achieved during 1 process with highly precise performance.
Auto Tooling Positioning Function
Clamp/Pressure die are positioned automatically via smart control.
Safety Protection
- Fool-proof Function:
Improper operation notification to prevent the machine from the damage. - Comprehensive Safety Mechanisms:
Proximity sensors and Safety plates are set around the machine working zone to keep workers safe.
| Spec / Model | HC-300LR-NSM | |
|---|---|---|
| Max. O.D. * W.T. | Mild Steel (mm) | Ø30 x 1.5 |
| Max. CLR | 80 mm | |
| Standard Mandrel Length | 1500 mm | |
| Max. Bending Angle Range | 180° | |
| Electric-Servo Speed | Feeding (mm/sec) | 1000 mm |
| Rotation (degree/sec) | 750° | |
| Bending (degree/sec) | 400° | |
| Electric-Servo Accuracy | Feeding (mm/sec) | ±0.05 mm |
| Rotation (degree/sec) | ±0.05 ° | |
| Bending (degree) | ±0.05 ° | |
| Max. Radius Difference | 25 mm | |
| Total Power | 13.2 Kw | |
| Dimension | 3600 x 1730 x 1250 mm | |
| Weight | 1,800 kgs | |
PC-Based Control

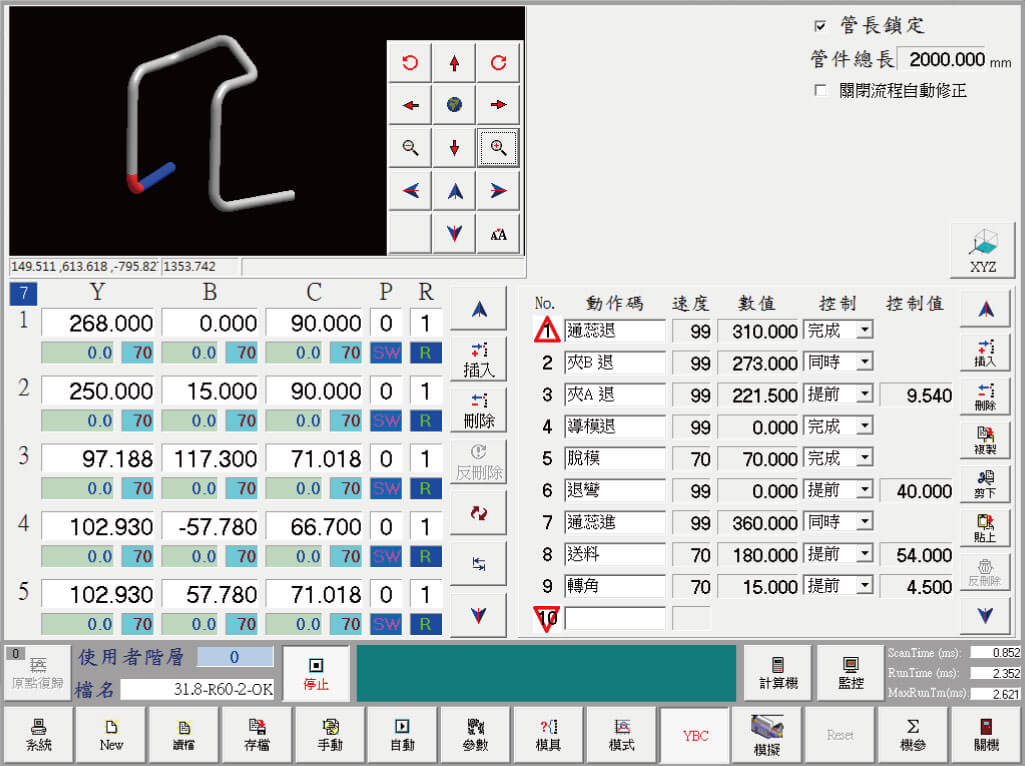

- 3D tube profile can be shown immediately when editing YBC program to help users.
- Under Auto mod, 3D tube graphic indicates current bending section by different color block.
- 3D Bending Process Simulation(Optional) directs bending process in advance to avoid unnecessary waste.
3D Bending Process Simulation (Optional)
3D Tube Simulation
sBend Software (HJ Development)
- Fast Workpiece Parameter Acquisition:
.dxf / .step files can be converted to Y.B.C data. - 3D Workpiece Preview:
Read-time 3D workpiece preview is acquired while Y.B.C data is programming. - 3D Bending Simulation:
Workpiece bending process can be previewed and verified in advance to prevent the waste.
